Shrink Fitting Furnace
Shrink Fitt Furnace
Shrink fitting furnaces are designed for assembling or disassembling metal components using controlled thermal expansion In this process, a metal part is heated to a specific temperature to expand, allowing another component to be installed or removed safely
The typical operating temperature ranges between 150°C and 300°C:
-
• Lower temperatures for metals such as aluminum
-
• Higher temperatures for carbon steels
This method enables precise and secure assembly without altering the mechanical properties of the components.
How the Shrink Fitting Process Works
Shrink fitting is based on the natural physical property of metals:
Metals expand when heated and contract when cooled.
General Process Steps:
-
Heating one component to a specified temperature
-
Inserting the cold component into the heated part
-
Allowing the assembly to cool, creating a tight mechanical fit
The resulting joint is typically semi-permanent and free from destructive stress.
Applications of Shrink Fitting Furnaces
-
• Installation and removal of rollers on shafts
-
• Mining and roller crusher industries
-
• Heavy industrial component assembly
-
• Maintenance of rotating equipment
-
• Steel and cement production lines
Heating Methods in Shrink Fitting Furnaces
1. Induction Shrink Fitting Furnace
-
Provides rapid and localized heating
-
precise temperature control
-
Ideal for accurate assembly and disassembly of sensitive components.
-
Commonly used in heavy industries and workshop environments

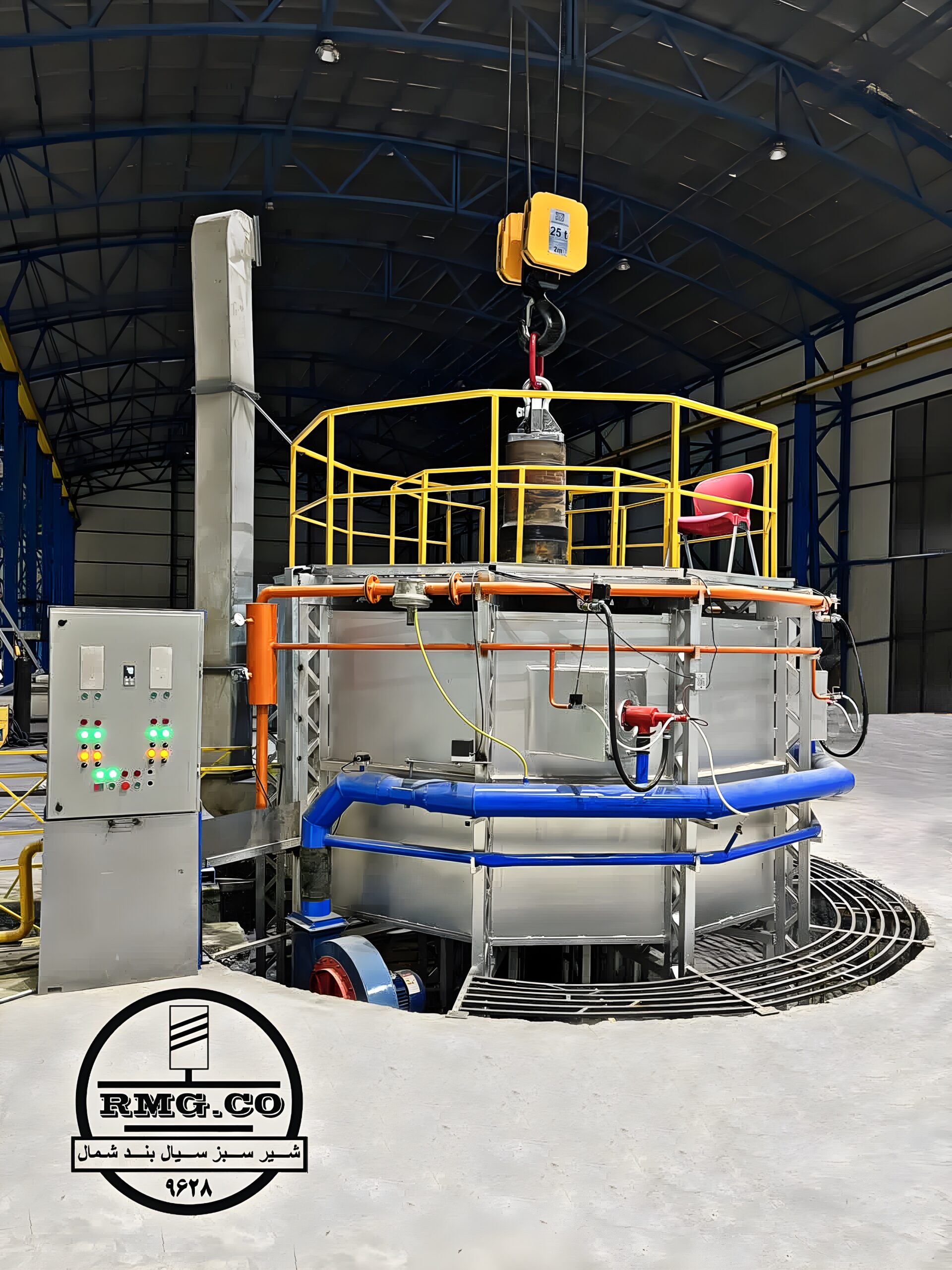

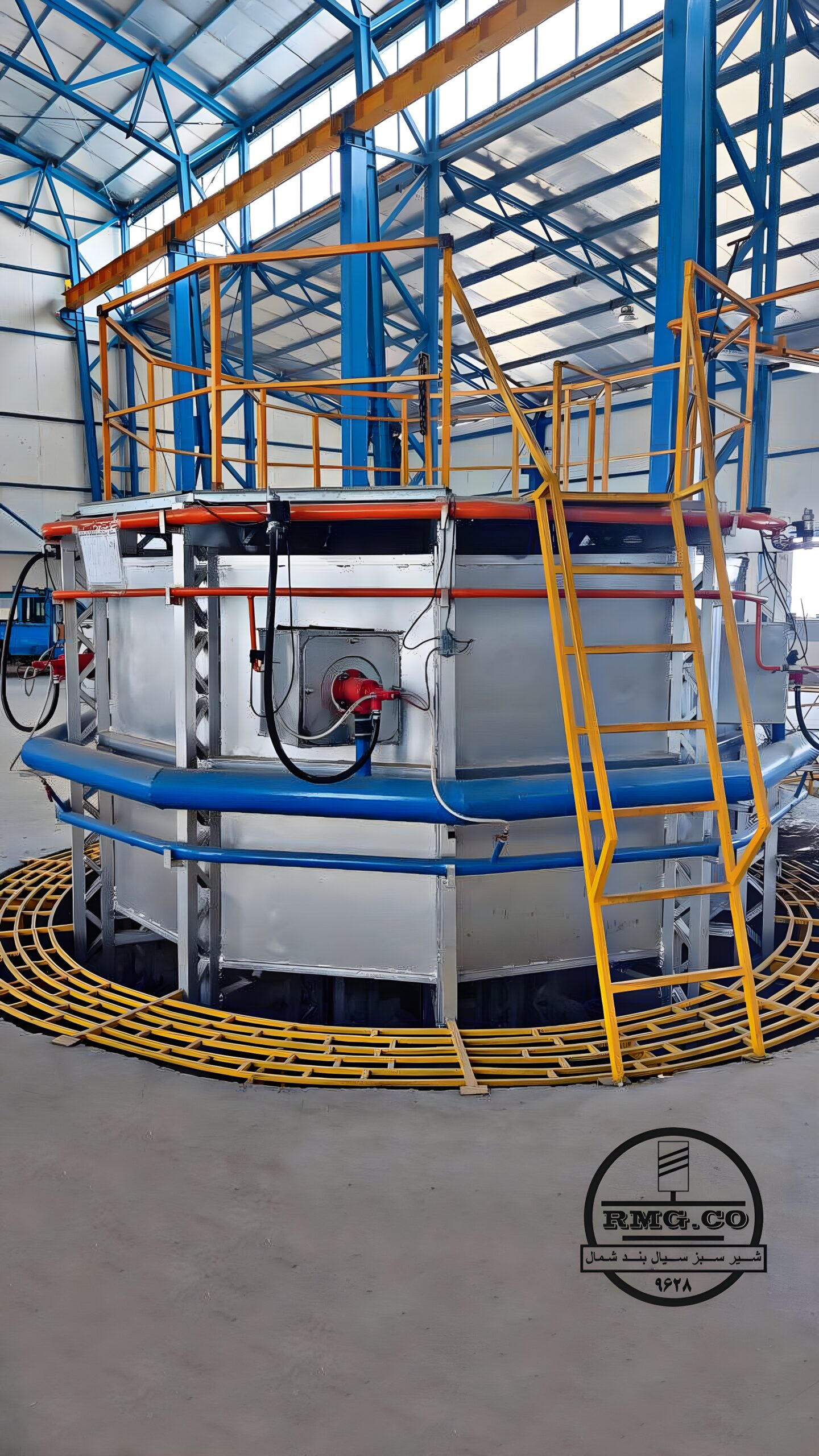

2. Flame Shrink Furnace
In this method, industrial burners are used to heat the component.
Advantages:
-
High thermal efficiency
-
Lower manufacturing and operating costs
-
Suitable for large components and mining applications
Modern designs incorporate proprietary technologies to improve efficiency and reduce energy consumption.
Advantages of Shrink Fitting Furnaces
-
• Assembly and disassembly without damaging components
-
• No change in metallurgical properties
-
• Reduced mechanical stress
-
• Extended component lifespan
-
• Shorter maintenance time
-
• Eliminates the need for re-machining
-
• Suitable for on-site operations
Economic Benefits
-
• Reduced transportation costs for heavy components
-
• Ability to install the furnace at the mine or factory site
-
• Minimized production downtime
-
• Lower major overhaul expenses
For these reasons, shrink fitting furnaces are an ideal solution for mining operations, cement plants, and crushing lines.
Industrial Design Features
-
• Available in induction or flame models
-
• Custom-built based on component dimensions
-
• Durable construction for harsh industrial environments
-
• Optimized energy consumption
-
• Safe and user-friendly operation
